Multilayer Hierarchical Control for Team-of-Teams Escort Formation

This example demonstrates multi-agent escort formation control comparing a 3-Layer Pushforward Control Architecture ($f_\star F$) against a Direct 2-Layer Solve on the full sheaf $F$ using the generic Layered architecture.

Mathematical & Categorical Overview

• Generic Topology Specification (LayeredEscortSpec):
  • Ring 1 (6 agents): Escorts Target 1 (node 16) at radius $r_1 = 0.3\,\text{m}$.
  • Ring 2 (6 agents): Escorts Target 2 (node 17) at radius $r_2 = 0.36\,\text{m}$.
  • Support Pool (3 agents): Bridges Ring 1 and Ring 2, observing Target 1 and Target 2 directly.
• Pushforward Sheaf $f_\star F$ (3 coarse nodes):
  • Coarsens Fiber 1 $\to$ Node 1, Fiber 2 $\to$ Node 2, Support Pool $\to$ Node 3.
  • Fiber bases are structured and managed via LayeredFiberBases.
  • Pseudoinverse lifting $T^+$ projects high-level midpoint references back onto the subspace of exact subteam consensus.

using CellularSheaves
using CellularSheaves.Formations
using CellularSheaves.AgentControllers
using CellularSheaves.ControlSheaves.Layered
using CellularSheaves.ControlSheaves.NestedSystems
using CellularSheaves.Pushforwards
using CellularSheaves.GraphHomomorphisms
using LinearAlgebra
using Statistics
using Plots
using Printf

–- Topology Specification –-

const r_ring = 0.3

rings = [
    RingSpec(1, 6, r_ring),
    RingSpec(2, 6, r_ring * 1.2)
]
supports = [
    SupportSpec(1, 2, 3)
]

spec = LayeredEscortSpec(rings, supports)

–- Sheaf Topology & Homomorphism –-

F = build_layered_escort_sheaf(spec)
f = build_layered_homomorphism(spec)

PfF = pushforward_sheaf(f, F)
bases = build_layered_fiber_bases(f, F, spec)

–- Simulation Parameters –-

DT = 0.05
STEPS = 200

Setup LQR gain for tests

dyn_test = QuadrotorDynamics()
Ad, Bd = CellularSheaves.AgentControllers.discrete_matrices(dyn_test, DT)

Standard LQR Cost Matrices (moderate velocity gain)

Q_diag = [500.0, 500.0, 500.0, 150.0, 150.0, 100.0, 100.0, 100.0, 5.0, 5.0]
Q_lqr = Matrix(Diagonal(Q_diag))
R_lqr = Matrix(Diagonal([0.005, 0.005, 0.005]))

K_test = CellularSheaves.AgentControllers.solve_dare(Ad, Bd, 10*Q_lqr, R_lqr)

Target position, velocity, and acceleration trajectories

target1_pos(t) = [1.0 + 0.5 * cos(0.5 * t), 0.5 * sin(0.5 * t), 1.5 + 0.01 * sin(1.0 * t), 1.0]
target2_pos(t) = [-1.0 - 0.5 * cos(0.5 * t), -0.5 * sin(0.5 * t), 1.5 + 0.01 * cos(1.0 * t), 1.0]

target1_vel(t) = [-0.25 * sin(0.5 * t), 0.25 * cos(0.5 * t), 0.01 * cos(1.0 * t), 0.0]
target2_vel(t) = [0.25 * sin(0.5 * t), -0.25 * cos(0.5 * t), -0.01 * sin(1.0 * t), 0.0]

target1_acc(t) = [-0.125 * cos(0.5 * t), -0.125 * sin(0.5 * t), -0.01 * sin(1.0 * t), 0.0]
target2_acc(t) = [0.125 * cos(0.5 * t), 0.125 * sin(0.5 * t), -0.01 * cos(1.0 * t), 0.0]

target_trajs = [target1_pos, target2_pos]
target_vels  = [target1_vel, target2_vel]
target_accels = [target1_acc, target2_acc]

prob_pf = LayeredEscortProblem(
    spec, F, f, PfF, bases,
    SystemBinding(dynamics=dyn_test, K_lqr=K_test),
    target_trajs, target_vels, target_accels,
    DT, STEPS, nothing
)

Simulation 1: 3-Layer Pushforward Architecture (f_★F) –-

@time res_pf = run_layered_escort_simulation(prob_pf; use_feedforward=true)
@time res_pf = run_layered_escort_simulation(prob_pf; use_feedforward=true)

Simulation 2: Direct 2-Layer Solve on Sheaf F –-

function direct_simulation()
    sim_data_dir = Vector{Vector{Vector{Float64}}}()
    qstar_history_dir = Vector{Matrix{Float64}}()
    target_history_dir = Vector{Vector{Vector{Float64}}}()

    time_grid = 0:DT:(STEPS*DT)
    # Initialize agent states for direct simulation using AgentState and JointTikhonovFilter
    agent_states_dir = [AgentState(zeros(10), dyn_test, DT, K_test, 0.02; use_velocity=true) for _ in 1:spec.n_agents]
    for state in agent_states_dir
        state.x[3] = 1.5
    end

    for step in 1:STEPS
        t = time_grid[step]
        p1 = target1_pos(t)
        p2 = target2_pos(t)
        p3_center = (p1 + p2) ./ 2.0
        push!(target_history_dir, [p1, p2, p3_center])

        # Direct Harmonic Solves on F for position, velocity, and acceleration
        qstar_agents = solve_direct_harmonic(F, spec.target_nodes, [p1, p2])
        qstar_dot_agents = solve_direct_harmonic(F, spec.target_nodes, [target1_vel(t), target2_vel(t)])
        qstar_ddot_agents = solve_direct_harmonic(F, spec.target_nodes, [target1_acc(t), target2_acc(t)])
        push!(qstar_history_dir, qstar_agents)

        # Agent Dynamics Integration with Feedforward Velocity & Acceleration Support
        step_states = Vector{Vector{Float64}}()
        for i in 1:spec.n_agents
            q_ref_i = qstar_agents[i, 1:3]
            q_dot_i = qstar_dot_agents[i, 1:3]
            q_ddot_i = qstar_ddot_agents[i, 1:3]

            step_agent!(agent_states_dir[i], q_ref_i, q_dot_i, q_ddot_i, DT)
            push!(step_states, copy(agent_states_dir[i].x))
        end
        push!(sim_data_dir, step_states)
    end
    return (sim_data_dir, qstar_history_dir, target_history_dir, time_grid)
end

@time direct_simulation()
@time sim_data_dir, qstar_history_dir, target_history_dir, time_grid = direct_simulation()

–- 3. Render Animations & Visualizations –-

r1, r2, r3 = r_ring, r_ring * 1.2, r_ring * 0.8

Render 3-Layer Pushforward Animation

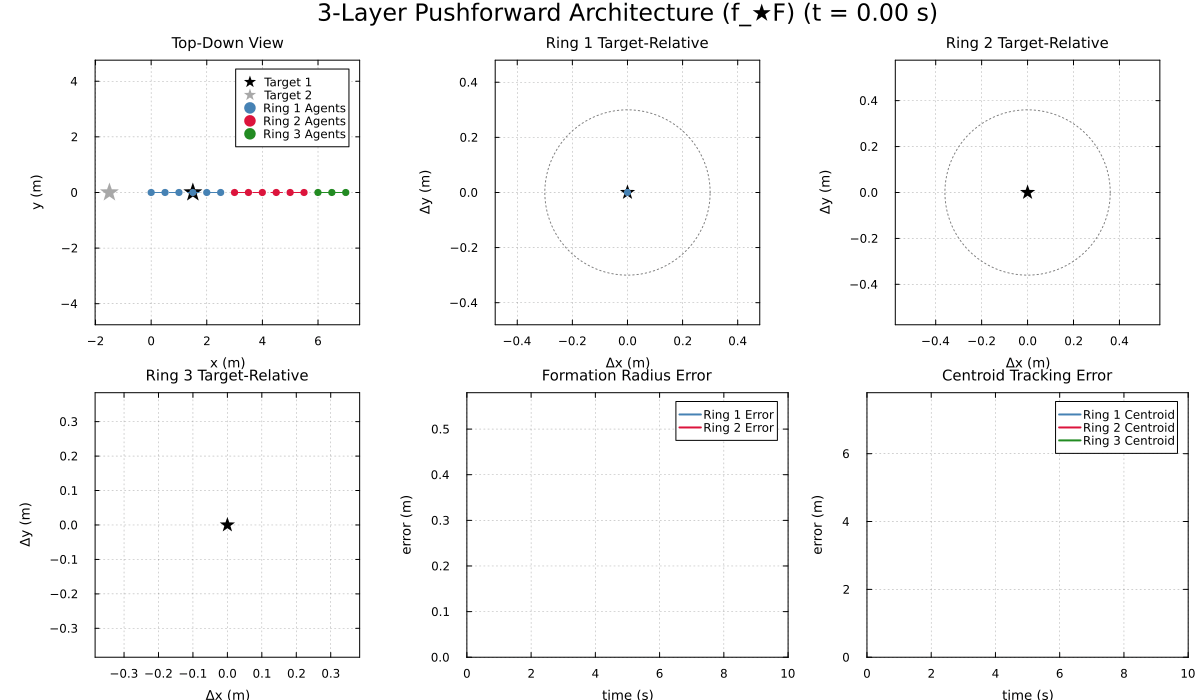

animate_comprehensive_escort(res_pf.sim_data, res_pf.qstar_history, res_pf.target_history, time_grid, r1, r2, r3, "multilayer_comprehensive_animation.gif"; frame_step=4, fps=10, title_prefix="3-Layer Pushforward Architecture (f_★F)")

Render Direct 2-Layer Solve Animation

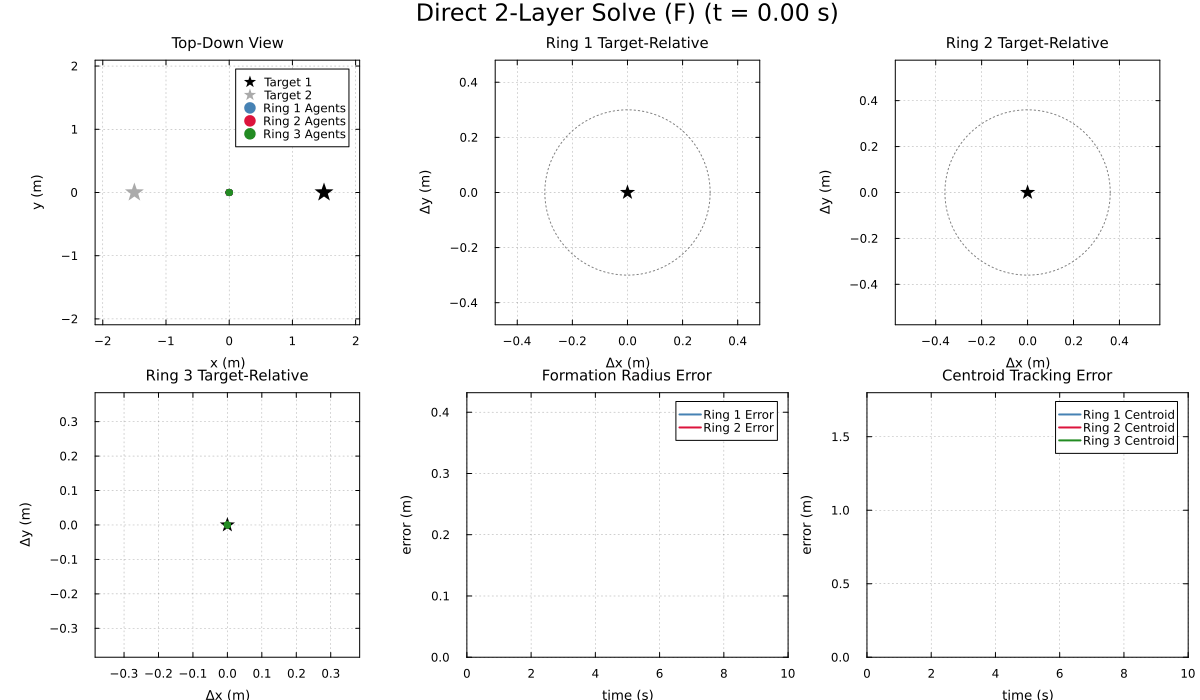

animate_comprehensive_escort(sim_data_dir, qstar_history_dir, target_history_dir, time_grid, r1, r2, r3, "direct_sheaf_comprehensive_animation.gif"; frame_step=4, fps=10, title_prefix="Direct 2-Layer Solve (F)")

println("Multilayer Escort simulation with generic architecture complete.")

Visual Comparison Animations
